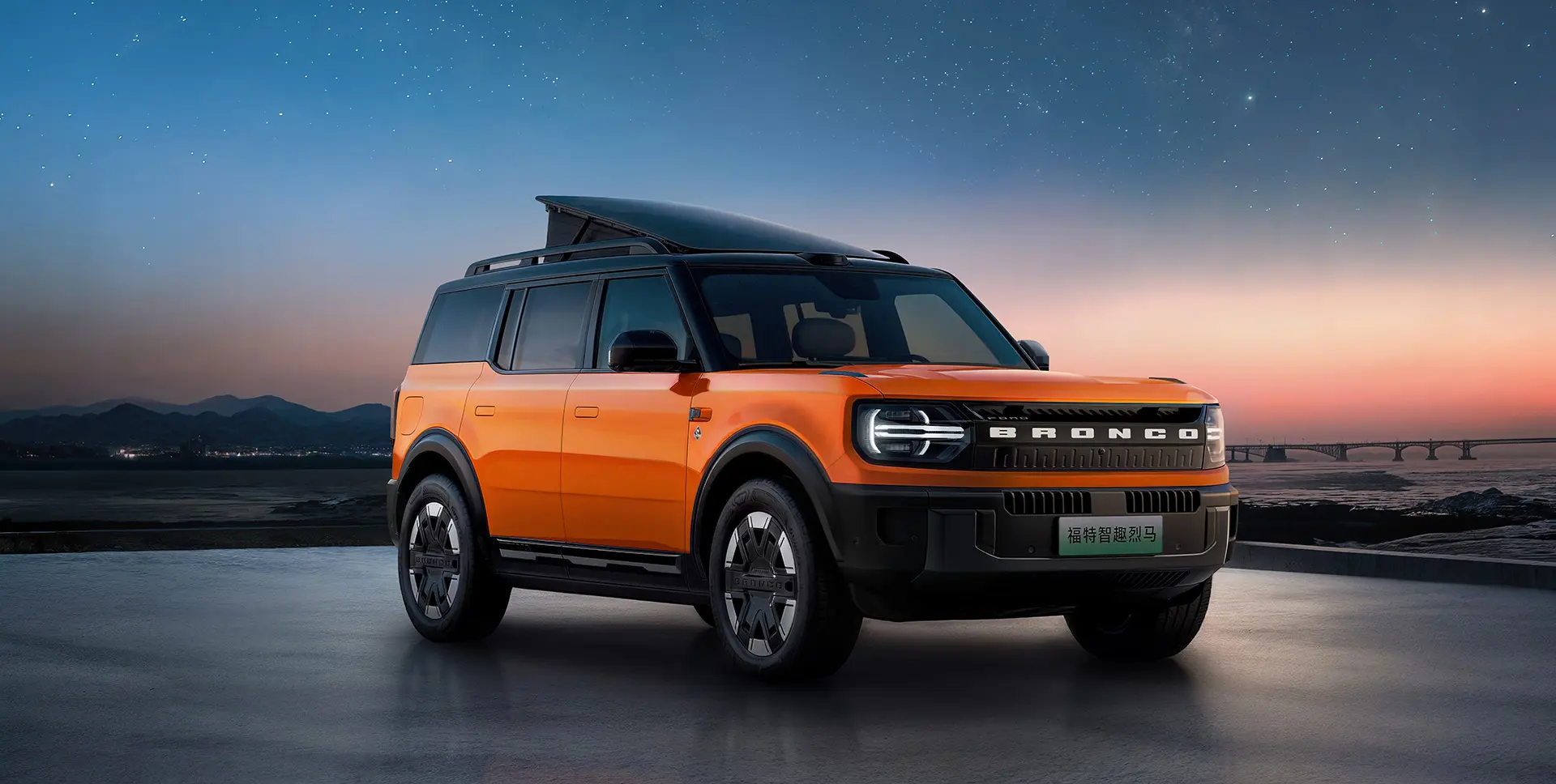

The smart and fun-filled all-terrain camping SUV
Total System Power (kW)
332
Total System Torque (Nm)
575
Electric Range (km)
650
Calmly control the daily rhythm With its 5-meter-long body and nearly 3-meter wheelbase, it's instantly captivating and stands out wherever it goes.

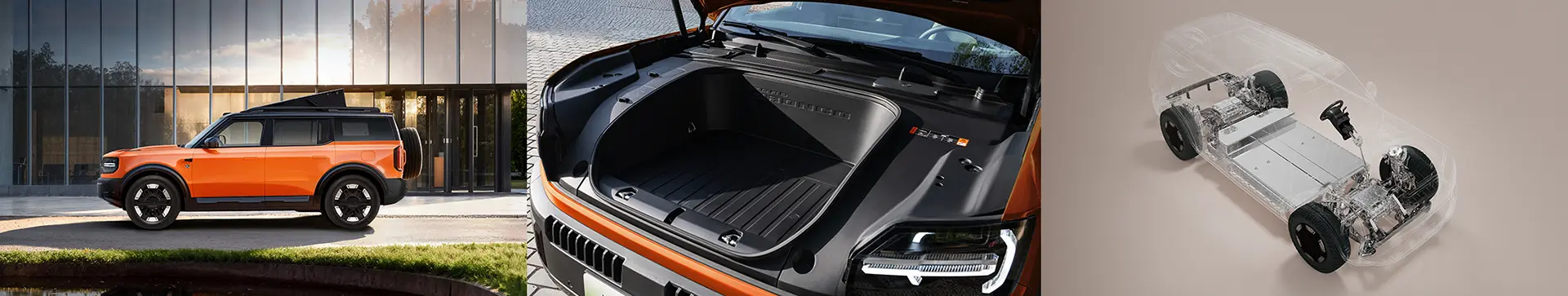

160L Electric Suction Anti-Pinch Open Front Trunk Drainage and stain prevention, built-in anchor points for easy and safe fixing (*electric version only).
Large battery capacity and long driving range reduce the hassle of frequent charging The range-extended model has a combined range of 1220km (CLTC) with a power consumption of 43.7kWh; the pure electric model has a combined range of 650km (CLTC) with a power consumption of 105.4kWh.

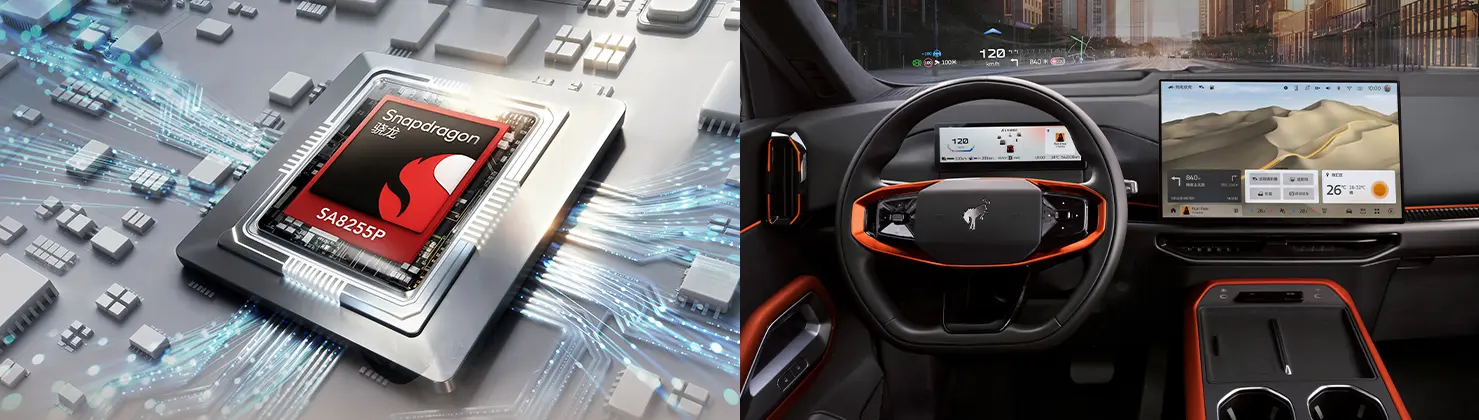

Snapdragon 8255 chip 230K powerful computing power and intelligent interaction eliminate lag.
70-inch AR-HUD real-time navigation, providing clear road information; Dual-core intelligent AI-GPT large model for efficient response and accurate answers.

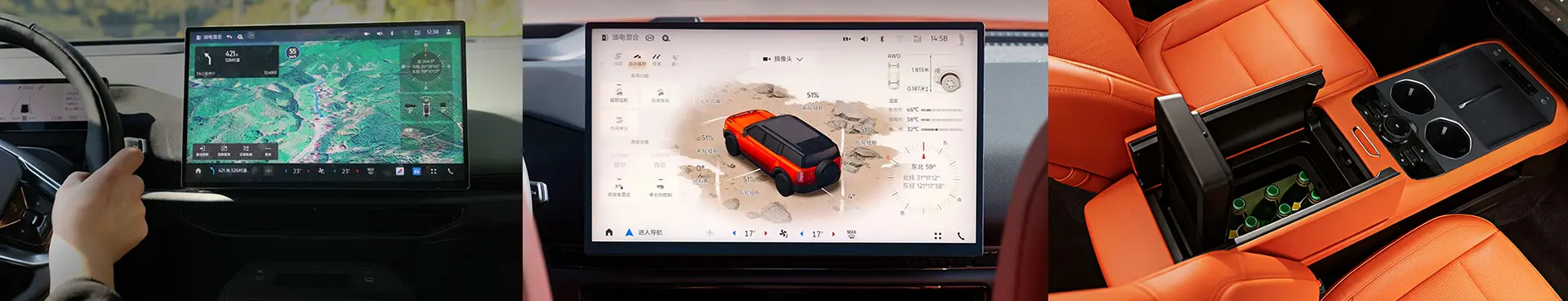

Smart travel guide 3D satellite map navigation, intelligent recommendation of photo spots along the way, intelligent linkage with the vehicle's exterior camera, one-click shooting while driving, easy sharing.
Off-road 360 with transparent chassis Complex road conditions, reduce blind spots
7.5L Large Refrigerator (Cooling and Heating) Temperature regulation range: -6℃ to 15℃, 35℃ to 50℃, suitable for both cooling and warming.

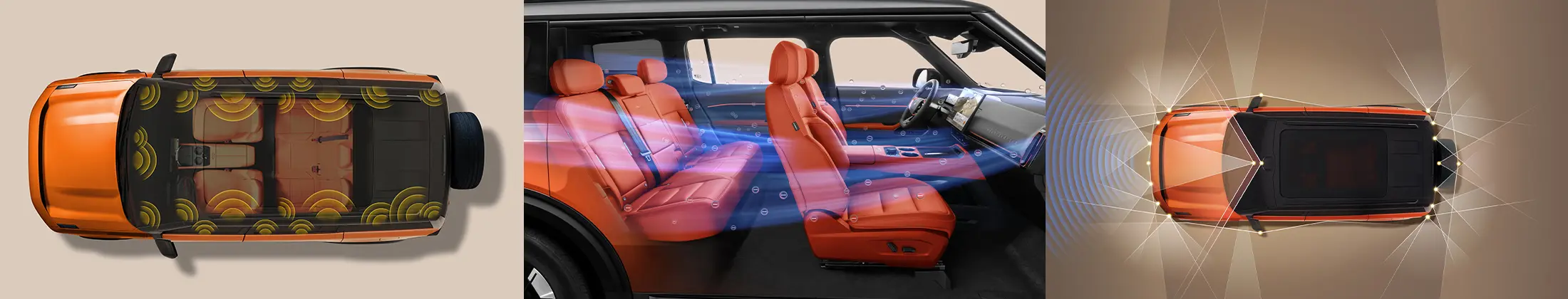

Immersive audio-visual experience 21 speakers + 1000W amplifier + 7.1.4 channels create a surround sound experience.
AI-powered smart air conditioner Supports voice/remote control and multiple airflow modes, making the temperature more intuitive. Intelligent exhaust emission control + real-time PM2.5 monitoring automatically switches between internal and external air circulation to keep the car interior always fresh.
Intelligent assisted driving With 31 sensing hardware components, dual Orin-X chips, and a top-tier LiDAR, its capabilities are outstanding.
Explore more possibilities in life.
160L Electric Suction Anti-Pinch Open Front Trunk Drainage and stain prevention, built-in anchor points for easy and safe fixing (*electric version only).
One-click roof for convenient vehicle accommodation 36cm electric anti-pinch lift top, rain sensor, automatic closing, one-touch conversion of the first/second row into a bed, no need to move the trunk or luggage, independent air vents on the B-pillar + charging port on the C-pillar, easy and worry-free.
One-click rest and relaxation with a phone call The first and second rows can be reclined with a single touch, the headrests fold automatically, and white noise, alarm clock, air conditioning, and sunshade can all be set with a single touch. Combined with a smart audio-visual system, a refrigerator for heating and cooling, and microphone-free karaoke, it creates a private VIP lounge.
Enjoy delicious food in the mountains with just one click The original tailgate features a multi-functional control panel with a magnetic closure and a small storage shelf for organized and readily accessible items. A 6.6kW external power supply supports simultaneous operation of multiple high-power appliances, ensuring convenient and safe electricity use.
Let loose and have fun in the wilderness.

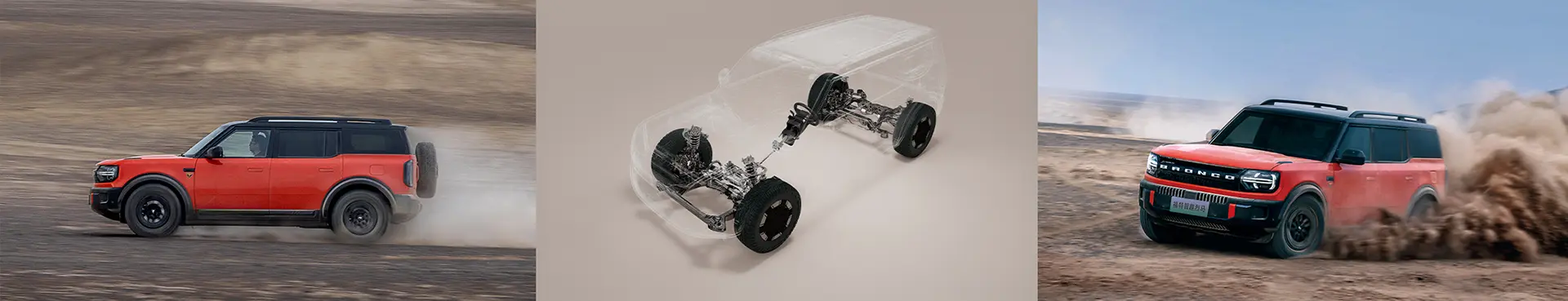

All models feature four-wheel drive with one-button 50:50 power lock to easily conquer all terrains; front/rear mechanical differential locks support padlock while driving, maximizing off-road capability (*Standard only for Long Beach Extended Range version).
Aluminum alloy front double wishbone + rear five-link independent suspension Make off-roading less bumpy.
The Wild Horse U-Turn mode boasts a 3-meter turning radius, enabling easy U-turns even in narrow roads. The Crawl mode provides stable low-speed control at 2km/h, allowing for intelligent driving assistance even in off-road environments.

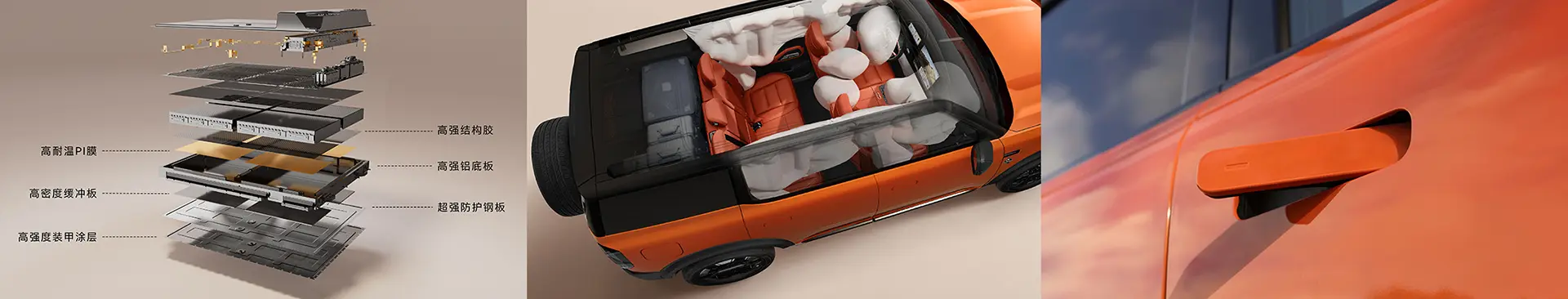

The battery's 6-layer protection strength reaches 4.66 times the new national standard. It meets IP68 and IPX9 dust and water resistance standards and will not leak after 48 hours of immersion.
All models come standard with 10 airbags, including remote airbags. Build comprehensive three-dimensional protection.
Concealed door handles. With its built-in five-fold safety mechanism, the car doors can be reliably opened even in emergencies.
| Specification | Far Bay Extended Range | Ink Diamond Extended Range Edition | Black Diamond Pure Electric Edition |
| Basic Parameters | |||
| Length × Width × Height (mm) | 5025 × 1960 × 1825 | 5025 × 1960 × 1825 | 5025 × 1960 × 1825 |
| Wheelbase (mm) | 2950 | 2950 | 2950 |
| Track Width (mm) | 1670 | 1670 | 1670 |
| Seating Capacity | 5 | 5 | 5 |
| Front Trunk Capacity (L) | Not available | Not available | 160 |
| Luggage Capacity (L) | 497 | 497 | 497 |
| CLTC Electric Range (km) | 220 | 220 | 650 |
| Fuel Tank Capacity (L) | 63 | 63 | Not available |
| Fuel Grade | 92 RON | 92 RON | Not available |
| CLTC Combined Driving Range (km) | 1220 | 1220 | Not available |
| Kerb Weight (kg) | 2510 | 2510 | 2630 |
| Vehicle Warranty | 5 years / 100,000 km | 5 years / 100,000 km | 5 years / 100,000 km |
| Electric Powertrain Warranty | 8 years / 160,000 km | 8 years / 160,000 km | 8 years / 160,000 km |
| Powertrain | |||
| Range Extender | 1.5L turbocharged four-cylinder | 1.5L turbocharged four-cylinder | Not available |
| Total System Power (kW) | 310 | 310 | 332 |
| Total System Torque (Nm) | 600 | 600 | 575 |
| Drivetrain | Intelligent electric four-wheel drive | Intelligent electric four-wheel drive | Intelligent electric four-wheel drive |
| Battery Type | Lithium iron phosphate (LFP) blade battery | Lithium iron phosphate (LFP) blade battery | Lithium iron phosphate (LFP) blade battery |
| Battery Capacity (kWh) | 43.7 | 43.7 | 105.4 |
| DC Fast Charging Time (30–80%) | 27 minutes | 27 minutes | 23 minutes |
| Range Added in 20 Minutes (km) | 113 | 113 | 302 |
| Combined Fuel Consumption (L/100 km) | 0.74 | 0.74 | Not available |
| Fuel Consumption – Battery Depleted (L/100 km) | 7.25 | 7.25 | Not available |
| 0–100 km/h (sec) | 5.8 | 5.8 | 5.3 |
| Maximum Speed (km/h) | 170 | 170 | 170 |
| Charging & Discharging | |||
| External AC Power Output | V2L – 6.6 kW / V2V – 6.6 kW | V2L – 6.6 kW / V2V – 6.6 kW | V2L – 6.6 kW / V2V – 6.6 kW |
| Intelligent Battery Replenishment – Maximum Power (kW) | 13 | 13 | Not available |
| 12V Power Outlets | 2 | 2 | 2 |
| 220V Luggage Compartment Power Outlet | Not available | Standard | Standard |
| Scheduled Charging | Standard | Standard | Standard |
| Chassis & Off-Road | |||
| Suspension | Aluminium alloy front double wishbone / rear five-link | Aluminium alloy front double wishbone / rear five-link | Aluminium alloy front double wishbone / rear five-link |
| Brakes | Ventilated discs, front and rear | Ventilated discs, front and rear | Ventilated discs, front and rear |
| Terrain Management System | 3 modes: Standard / Eco / Sport | 7 modes: Standard / Eco / Sport / Slippery / Sand / Gravel / Mud | 7 modes: Standard / Eco / Sport / Slippery / Sand / Gravel / Mud |
| Comfort Braking | Standard | Standard | Standard |
| Electronic Parking Brake | Standard | Standard | Standard |
| Auto Hold | Standard | Standard | Standard |
| Hill Descent Control | Standard | Standard | Standard |
| Creep Mode (2–30 km/h) | Not available | Standard | Standard |
| Bronco Turn Assist | Not available | Standard | Standard |
| Forced Four-Wheel Drive Mode | Standard | Standard | Standard |
| Front Differential Lock | Not available | Not available | Not available |
| Rear Differential Lock | Not available | Not available | Not available |
| Ground Clearance – Unladen (mm) | 220 | 220 | 215 |
| Approach Angle – Unladen (°) | 30 | 30 | 30 |
| Departure Angle – Unladen (°) | 32 | 32 | 31 |
| Breakover Angle – Unladen (°) | 19 | 19 | 19 |
| Wading Depth (mm) | 600 | 600 | 600 |
| Exterior | |||
| Tyres | 255/60 R19 HT | 255/60 R19 HT | 255/60 R19 HT |
| Full-Size Rear-Mounted Spare Wheel | Standard | Standard | Standard |
| Panoramic Glass Roof | Standard | Standard | Standard |
| Power Pop-Up Roof with Rain Sensor | Not available | Optional | Optional |
| Illuminated Logo | Standard | Standard | Standard |
| Headlights | LED | LED | LED |
| Automatic Headlights | Standard | Standard | Standard |
| Automatic High Beam | Standard | Standard | Standard |
| Approach Lighting | Not available | Not available | Standard |
| Power Front Trunk | Not available | Not available | Standard – soft-close |
| Power Tailgate | Not available | Not available | Not available |
| Privacy Glass | Rear | Rear | Rear |
| Acoustic Double-Glazed Glass | Windscreen / front side windows / panoramic roof | Windscreen / front side windows / panoramic roof | Windscreen / front side windows / panoramic roof |
| UV-Protection Glass | All windows | All windows | All windows |
| Wipers | Rain-sensing front wipers | Rain-sensing front wipers | Rain-sensing front wipers |
| Exterior Mirrors | Power adjustment / power folding on locking / position memory / auto tilt in reverse / heating | Power adjustment / power folding on locking / position memory / auto tilt in reverse / heating | Power adjustment / power folding on locking / position memory / auto tilt in reverse / heating |
| Roof Rails | Standard | Standard | Standard |
| Interior | |||
| Seat Upholstery | Synthetic leather | Genuine leather | Genuine leather |
| Driver's Seat Adjustment | 8-way power | 8-way power | 8-way power |
| Driver's Seat Lumbar Adjustment | 4-way power | 4-way power | 4-way power |
| Driver's Seat 8-Point Massage | Not available | Standard | Standard |
| Front Passenger Seat Adjustment | 6-way power | 6-way power | 6-way power |
| Front Passenger Lumbar Adjustment | Not available | Not available | Not available |
| Front Passenger 8-Point Massage | Not available | Not available | Not available |
| Heated Front Seats | Standard | Standard | Standard |
| Ventilated Front Seats | Standard | Standard | Standard |
| Front Seat Memory | Standard | Standard | Standard |
| Power Rear Seat Backrest Adjustment | Not available | Standard | Standard |
| Heated Rear Seats | Not available | Not available | Not available |
| Rest Mode | Standard | Standard | Standard |
| Double Bed Mode | Standard | Standard | Standard |
| One-Touch Automatic Rest Mode | Not available | Optional | Optional |
| One-Touch Automatic Double Bed Mode | Not available | Optional | Optional |
| Heated/Cooled Centre Console Refrigerator with Remote Control | Not available | Not available | Not available |
| Centre Console Refrigerator Capacity | Not available | Not available | Not available |
| Centre Console Refrigerator Temperature Range | Not available | Not available | Not available |
| Leather Multi-Function Steering Wheel | Not available | Standard | Standard |
| Steering Wheel Adjustment | 4-way manual | 4-way manual | 4-way manual |
| Heated Steering Wheel | Not available | Standard | Standard |
| Dual-Zone Automatic Climate Control | Standard | Standard | Standard |
| Power-Adjustable Front Air Vents | Standard | Standard | Standard |
| Rear B-Pillar Air Vents | Standard | Standard | Standard |
| 256-Colour Rhythmic Ambient Lighting | Standard | Standard | Standard |
| Smart Reading Lights with Remote and Voice Control | Standard | Standard | Standard |
| Reading Lights | 3-colour LED | 3-colour LED | 3-colour LED |
| Luggage Compartment Light | Standard | Standard | Standard |
| One-Touch Power Windows with Anti-Pinch | Standard | Standard | Standard |
| PM2.5 Cabin Air Filtration | Standard | Standard | Standard |
| Cabin Air Purifier | Standard | Standard | Standard |
| Smart Fresh Air Mode | Standard | Standard | Standard |
| Intelligent Automatic Defogging | Standard | Standard | Standard |
| Intelligent Exhaust Gas Prevention | Standard | Standard | Standard |
| Negative Ion Generator | Standard | Standard | Standard |
| Power Panoramic Roof Sunshade | Standard | Standard | Standard |
| Driver and Passenger Sun Visors with Illuminated Vanity Mirrors | Standard | Standard | Standard |
| Front and Rear USB-C Ports | 2 front / 2 rear | 2 front / 2 rear | 2 front / 2 rear |
| C-Pillar USB-C Charging Port | Standard | Standard | Standard |
| 50W Ventilated Wireless Phone Charging | Standard | Standard | Standard |
| Multi-Function Tailgate | Optional | Optional | Optional |
| High-Efficiency Heat Pump System | Not available | Not available | Standard |
| Bronco Bolts Accessory Mounting Points | Standard | Standard | Standard |
| Accessory Wiring Provision | Not available | Not available | Not available |
| Infotainment & Connectivity | |||
| Qualcomm Snapdragon 8255 Automotive Infotainment Chip | Standard | Standard | Standard |
| Digital Instrument Cluster | 8.8-inch full LCD | 8.8-inch full LCD | 8.8-inch full LCD |
| Central Display | 15.6-inch Mini LED 2.5K | 15.6-inch Mini LED 2.5K | 15.6-inch Mini LED 2.5K |
| 70-inch AR Head-Up Display | Not available | Standard | Standard |
| 7.1.4-Channel 1000W Surround Sound System | Not available | Standard | Standard |
| Speakers | 8 | 21 | 21 |
| Premium Custom Audio Effects | Not available | Standard | Standard |
| Smart Knob Physical Controller | Standard | Standard | Standard |
| Dual AI Large-Language Models | Doubao / DeepSeek | Doubao / DeepSeek | Doubao / DeepSeek |
| HD Digital Rear-View Mirror | Standard | Standard | Standard |
| DMS/OMS 2-in-1 Camera | Standard | Standard | Standard |
| In-Car Photography and Entertainment Functions | Standard | Standard | Standard |
| Exterior Streaming Camera | Standard | Standard | Standard |
| Multimodal Interaction – Voice and Gesture | Standard | Standard | Standard |
| Vehicle-to-Everything (V2X) / Mobile Remote Control | Standard | Standard | Standard |
| Wi-Fi Hotspot | Standard | Standard | Standard |
| Mobile Data Network | 4G | 4G | 4G |
| Four-Zone Voice Recognition | Standard | Standard | Standard |
| Keyless Entry and Start | Standard | Standard | Standard |
| Bluetooth Digital Key | Standard | Standard | Standard |
| NFC Card Key | Standard | Standard | Standard |
| Ford Muse Music | Standard | Standard | Standard |
| Microphone-Free Karaoke | Standard | Standard | Standard |
| External Vehicle Audio | Standard | Standard | Standard |
| Full-Vehicle OTA Updates | Standard | Standard | Standard |
| Driver Assistance | |||
| Driver Assistance Processor | Mobileye EyeQ6 | Mobileye EyeQ6 | Mobileye EyeQ6 |
| Driver Assistance System | Ford Fortress Driver Assist System | Ford Fortress Driver Assist System | Ford Fortress Driver Assist System |
| LiDAR | Not available | Not available | Not available |
| Millimetre-Wave Radars | 3 | 3 | 3 |
| Ultrasonic Sensors | 8 | 12 | 12 |
| Driver Assistance Cameras | 5 | 5 | 5 |
| 540° Panoramic Camera with Transparent Chassis View | Standard | Standard | Standard |
| Off-Road 360° Camera | Standard | Standard | Standard |
| 3D Satellite Navigation | Standard | Standard | Standard |
| Vehicle Compass | Standard | Standard | Standard |
| Adaptive Cruise Control (ACC) | Standard | Standard | Standard |
| Highway Navigation on Autopilot (NOA) | Not available | Not available | Not available |
| Emergency Lane Keeping (ELK) | Standard | Standard | Standard |
| Lane Keeping Assist (LKA) | Standard | Standard | Standard |
| Lane Centring Control (LCC) | Standard | Standard | Standard |
| Automatic Lane Change Assist (ALC) | Not available | Not available | Not available |
| Traffic Sign Recognition | Standard | Standard | Standard |
| Blind Spot Detection (BSD) | Standard – 2 radars | Standard – 2 radars | Standard – 2 radars |
| Front Cross Traffic Alert (FCTA) | Not available | Not available | Not available |
| Rear Cross Traffic Alert (RCTA) | Standard | Standard | Standard |
| Rear Cross Traffic Braking (RCTB) | Not available | Not available | Not available |
| Door Opening Alert (DOA) | Standard | Standard | Standard |
| Forward Collision Warning (FCW) | Standard | Standard | Standard |
| Rear Collision Warning (RCW) | Standard | Standard | Standard |
| Low-Speed Automatic Emergency Braking (LAEB) | Not available | Not available | Not available |
| Automatic Emergency Braking (AEB) | Standard | Standard | Standard |
| Lane Departure Warning (LDW) | Standard | Standard | Standard |
| Automatic Parking Assist (APA) | Not available | Standard | Standard |
| Remote Parking Assist (RPA) | Not available | Standard | Standard |
| Memory Parking (AVP) | Not available | Not available | Not available |
| Safety | |||
| Driver and Front Passenger Airbags | Standard | Standard | Standard |
| Driver and Front Passenger Side Airbags | Standard | Standard | Standard |
| Side Curtain Airbags | Standard | Standard | Standard |
| Rear Side Airbags | Standard | Standard | Standard |
| Far-Side Centre Airbag | Standard | Standard | Standard |
| Driver's Knee Airbag | Standard | Standard | Standard |
| Independent Backup Power Supply for Doors | Standard | Standard | Standard |
| Front and Rear Seatbelt Reminders | Standard | Standard | Standard |
| Pretensioning Seatbelts | 4 | 4 | 4 |
| Dashcam | Standard | Standard | Standard |
| Sentry Mode | Standard | Standard | Standard |
| Tyre Pressure Monitoring | Standard | Standard | Standard |
| Child Locks | Standard | Standard | Standard |
| ISOFIX Child Seat Anchorage Points | Standard | Standard | Standard |
| Rain-Sensing Wipers | Standard | Standard | Standard |
| Electronic Stability Control (ESC) and Roll Stability Control (RSC) | Standard | Standard | Standard |
| ABS with Electronic Brakeforce Distribution (EBD) | Standard | Standard | Standard |
| Electric Power Steering (EPS) | Standard | Standard | Standard |
| Crosswind Compensation (PDC) | Standard | Standard | Standard |
| Colours | |||

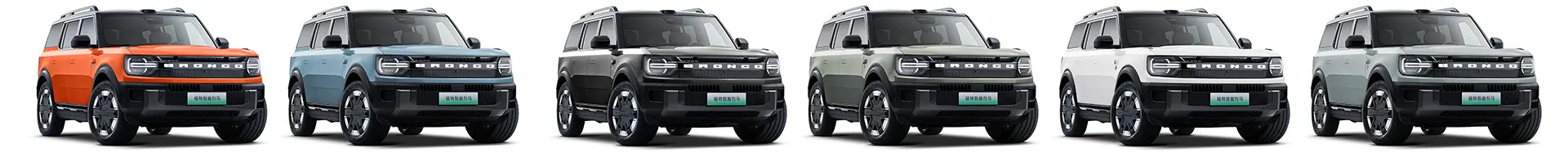

| Exterior Colours | Cliff Grey / Wilderness Green / Snow Peak White / Volcano Black / Kanas Blue / Flame Orange | Cliff Grey / Wilderness Green / Snow Peak White / Volcano Black / Kanas Blue / Flame Orange | Cliff Grey / Wilderness Green / Snow Peak White / Volcano Black / Kanas Blue / Flame Orange |
| Special Paint | ¥3,000 – Far Bay-exclusive colours not available | ¥3,000 – Far Bay-exclusive colours not available | ¥3,000 – Far Bay-exclusive colours not available |

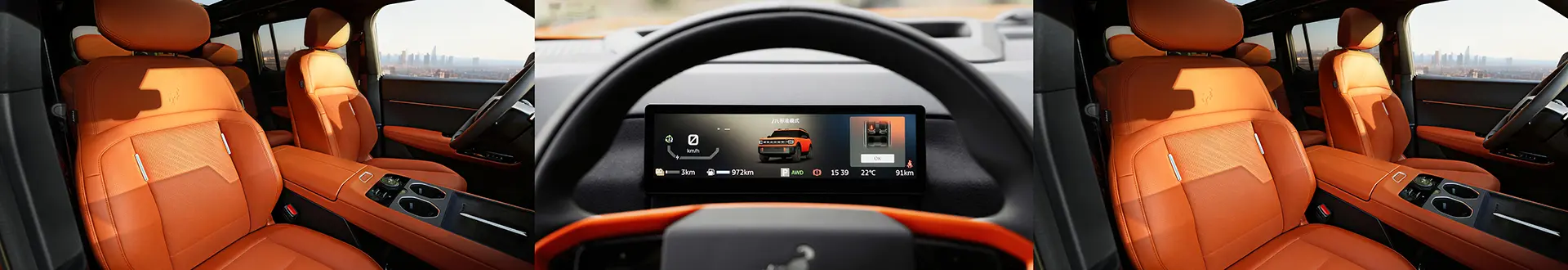

| Interior Colours | Moon Soil Grey | Moon Grey / Forest Green / Red Sand Orange | Moon Grey / Forest Green / Red Sand Orange |
| Special Interior Colour | Not available | ¥3,000 | ¥3,000 |
| Optional Packages | |||
| Black Roof Package | Not available | ¥3,000 – not available with Volcano Black exterior | ¥3,000 – not available with Volcano Black exterior |
| One-Touch Pop-Up Camping Package | Not available | ¥12,000 – includes One-Touch Pop-Up Roof and automatic folding of front seat headrests | ¥12,000 – includes One-Touch Pop-Up Roof and automatic folding of front seat headrests |
| Multi-Function Tailgate | ¥10,000 – limited-time offer | ¥10,000 – limited-time offer | ¥10,000 – limited-time offer |
